Here you will find a selection of photography showcasing our work. please click on any image to enlarge.
The new roof design consisted of two eyebrow dormers on front and rear elevations, 40˚ pitch slopes on each end of the building, consisting of three lead hips joining all elevations together.

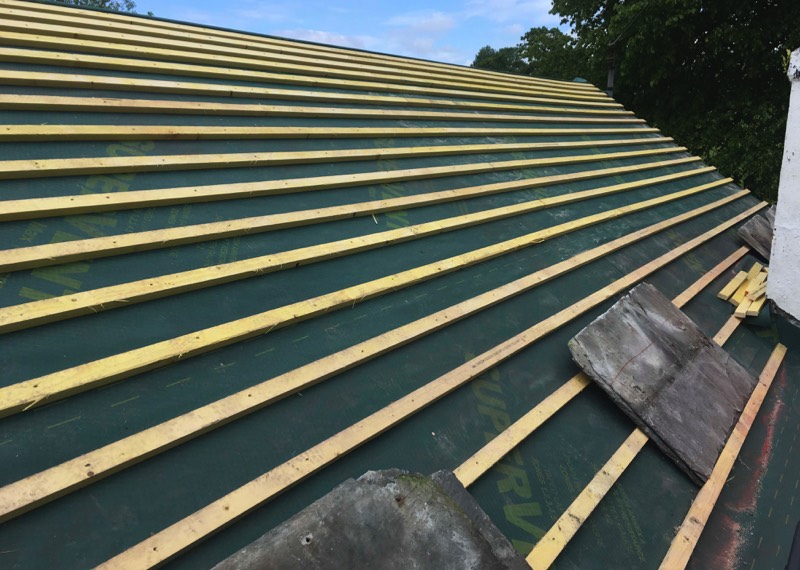

Albemarle villas is a 160 year old grade 2 listed building in Plymouth. The original roof had a mixture of natural slates covered with a bitumen based paint which is known as a ‘turnerised’ roof. None of the original slates can be saved after this has been applied so we replaced them with 500x250mm Spanish Armada prime slates. Fixed using copper nails on top of new treated battens and a breather membrane. The hips and ridges were fitted with new code 5 lead fixed down with stainless steal straps. A 17 meter section of timber frame box gutter had originally been lined with copper, this had to be removed and a new 17 metre section of copper was fitted to this area.

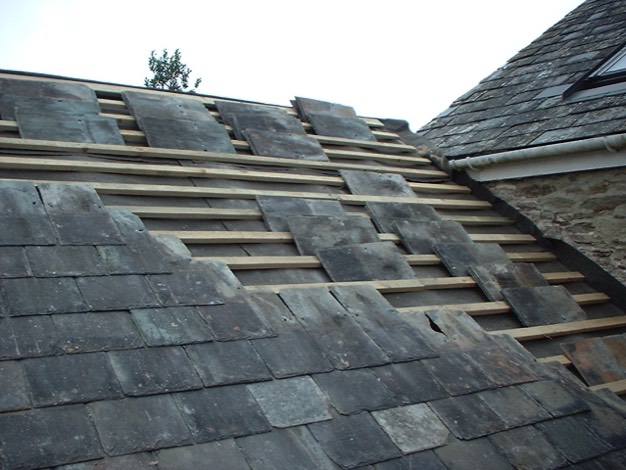

Lower Trebarret House is made up of two buildings, the oldest having a Delabole rag roof, which dates back to 1640. The other roof had 20” by 10” Delabole slates, which was built 150 years late.b Both roofs were suffering from slipped slates, due to nail fatigue and no felt/membrane. Upon removal of the rag slates it became evident that the 2” by 2” rafters and the 3” by 3” purlins were no longer fit for purpose, due to rot and beetle infestation.
Old Pensipple Farm is a 200 year old collection of three barns. The client was having problems with damp, condensation and slipped slates. Upon removal of the roof coverings, it was evident that nearly all existing timbers had suffered wet rot and beetle infestation.
We completed these two roofs for Fred Champion Ground works & construction at Harlyn bay north cornwall in the summer of 2023. Both roofs had a massive roof area of 250m2 and were fitted using reclaimed delabole slates using stainless slate hooks and copper nails. We installed an intergrated solar Pv system to one of the roofs and both roofs were fitted with a ridge line sky light which transformed the interior of the property’s.
This was a roofing project which as well as using my fantastic work crew, I also had my whole family involved. This is the family home in Plymouth which needed several things doing. As well as fitting a complete new roof which consisted of new 500x250 mm Spanish (Armada) slates using slate hooks and copper nails, we needed to fit two new new flue liners down the chimney It soon became evident that the chimney being around 140 years old was falling apart and needed to be taken down to roof level and rebuilt. We also decided to fit an integrated solar Pv system to the front elevation, fit x2 Velux windows and also a sun tunnel to the rear roof elevation to let in much needed natural light to the upstairs landing and hallway. As you can see from one of the photos I actually had my whole family on the roof with me at one stage
We completed this roof in the winter of 2022. The property near Landrake in Cornwall has a large roof and had been sprayed previously with the dreaded ‘spray foam insulation’ which to be honest is a total disaster. After the painstaking task of removing all the spray foam from the roof timbers it was evident that there had been severe rot caused mainly from trapped condensation which was caused by the spray foam which constricts are flow in the roof space. All the timber rafters had to be removed and replaced with new along with new timber wall plates. We used dark grey 500x250mm Spanish slates with slate hooks. We also fitted new code 5 lead work to the hips on the bay roof on the rear roof elevation.
